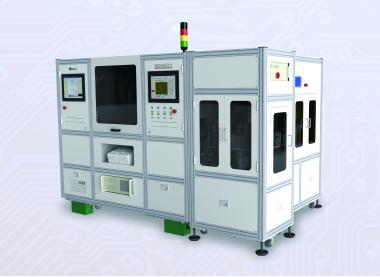

Model: MH601 High Precision Automatic Testing Machine



Application Area


1. Main Test Anylayer HDI \ High-volume HDI.
  2. Enduser Product Smartphone \ Tablet PC etc.
  3.Compatibility Test IC substrates \ Moudles etc.
Technical Advantages

  1. Step&Repeat testing fuction can significantly improve the test yield of offset, swell-shrink PCB
  2. CCD automatic alignment system can realize offset, swell-shrink PCB reliable
  3. Universal clamping structure that can test special-shaped board
  4. Four wire test function division of special line, defect line and reliable testing
  5. Four rotary shuttles to match the high precision operation and compensation system can realize high speed and high precision testing
  6. Fixture self-Iocking protection function can be achieved under the condition of power  outages and other reliable protection
  7. Standard and optional such as marking , flip ect. codereading  personalized functions
Technical Specifications
Test Capabilities
Test object MH601:Anylayer HDI, high layer count HDI
MH601L:IC substrates, module boards
Test points MH601:Up 8192 points, down 8192 points
MH601L:Up 16384points, down 16384points
Product size MH601:260mm*200mm(Max) 60mm*50mm(Min)
MH601L:320mm*260mm(Max) 60mm*50mm(Min)
PCB thickness
0.3~2.0mm
2-wire test speed ≥4000 points/s (under mason conditions)
Continuity test
10Ω~100Ω
Insulation test 1MΩ~100MΩ
Test voltage
50V~250V
Test current
20uA~20mA
Embedded resistance test 10Ω~200KΩ
4-wire test speed
≥1000 nets/s (under mason conditions)
Low resistance test 0.3mΩ~200Ω
Fixture Specifications
Min probe 0.05mm
Fixture type Wire probe fixture/composite fixture/READ fixture
Fixture assembly/disassembly One-touch operation
Standard configuration
Positioning accuracy
±7.5um
CCD quantity  4 groups (2 groups for fixture alignment, 2 groups for PCB alignment)
PCB fixing method
Universal substrate clamping tray
Loading & unloading tables LOAD、OPEN 、LEAK、PASS、PAPER
Other functions Dust removal function\tilt function\static removal
Optional
Functions Laser marking, barcode reading
Operating Requiremen
Temperature
18℃~25℃
Humidity 40%~60%
Power supply AC380V/50HZ ±5%25A
Air supply
0.6-0.8MPa (Dry、Clear)
Other No Vibration、No Dust、No corrosive gases
Machine specifications
Weight 3600KG, W2730*D1970*H1900mm
