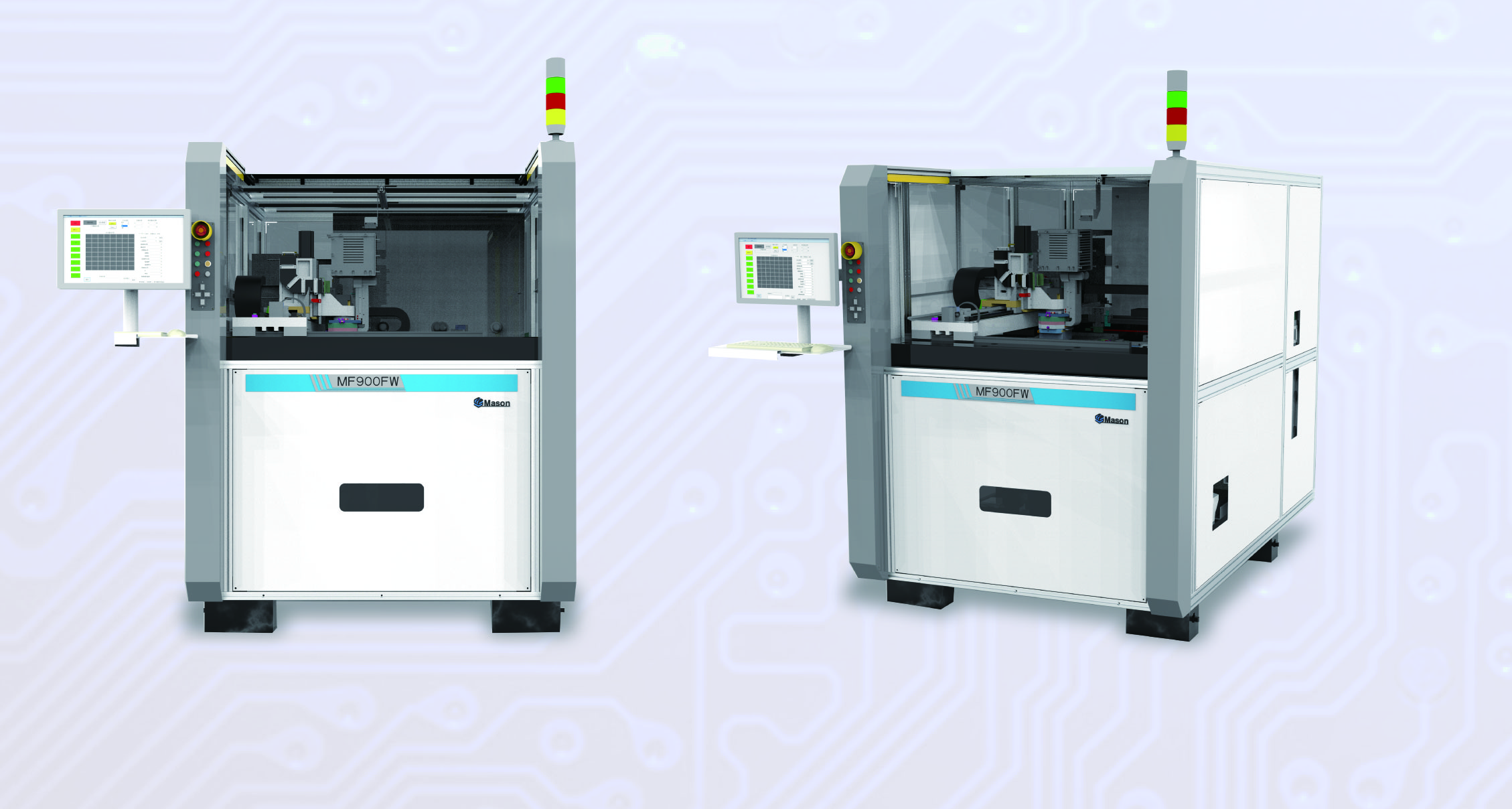

Model: MF900 High Precision Automatic Testing Machine



Application Area


1. Main Test FPC、rigid-flex
  2. Enduser Product Smartphone \ Tablet PC etc.
  3. Compatibility Test IC substrates \ Moudles etc.
Technical Advantages

  1. Step&Repeat testing fuction can significantly improve the test yield of offset, swell-shrink PCB
  2. CCD automatic alignment system can realize offset, swell-shrink PCB reliable
  3. Stable work holding by clamping 4-corners with tension
  4. Four wire test function division of special line, defect line and reliable testing
  5. The high precision operation and compensation system can realize high speed and high precision testing
  6. Fixture self-Iocking protection function can be achieved under the condition of power  outages and other reliable protection
Test object FPC, R-FPCB
Test points Up 1536 points,douwn 1536 points
Product size 400mm*260mm(Max) 70mm*70mm(Min)
Test area Areas outside the four corners of the product(10mm*9mm)
PCB thickness
0.1~0.6mm
Test voltage
50V~250V
Test current
20uA~20mA
Conduction resistance
10Ω~100Ω
Insulation resistance
1MΩ~100MΩ
2-wire test speed ≥4000 points/s (under mason conditions)
4-wire test 0.3mΩ~200Ω
4-wire test speed
≥1000 nets/s (under mason conditions)
Positioning accuracy
X axis,Y axis:±5um,rotation axis:±0.01° (repeatability)
Pressing accuracy
Z axis::±5um(repeatability)
CCD double-sided calibration functio With double-sided camera automatic calibration function
One-touch assembly/disassembly
of fixture
One-touch operation when changing fixtures convenient and quick
Marking function With ink pen marking function
Power supply Single-phase AC200~220V±10%, 50/60HZ, 4.5KVA
Air supply
Dry air greater than 0.5Mpa,greater than 100L/min
Temperature
18℃~25℃
Humidity 40%~60%
Dimensions W1400mm*D2200mm*H2100mm
Weight
2800kg
