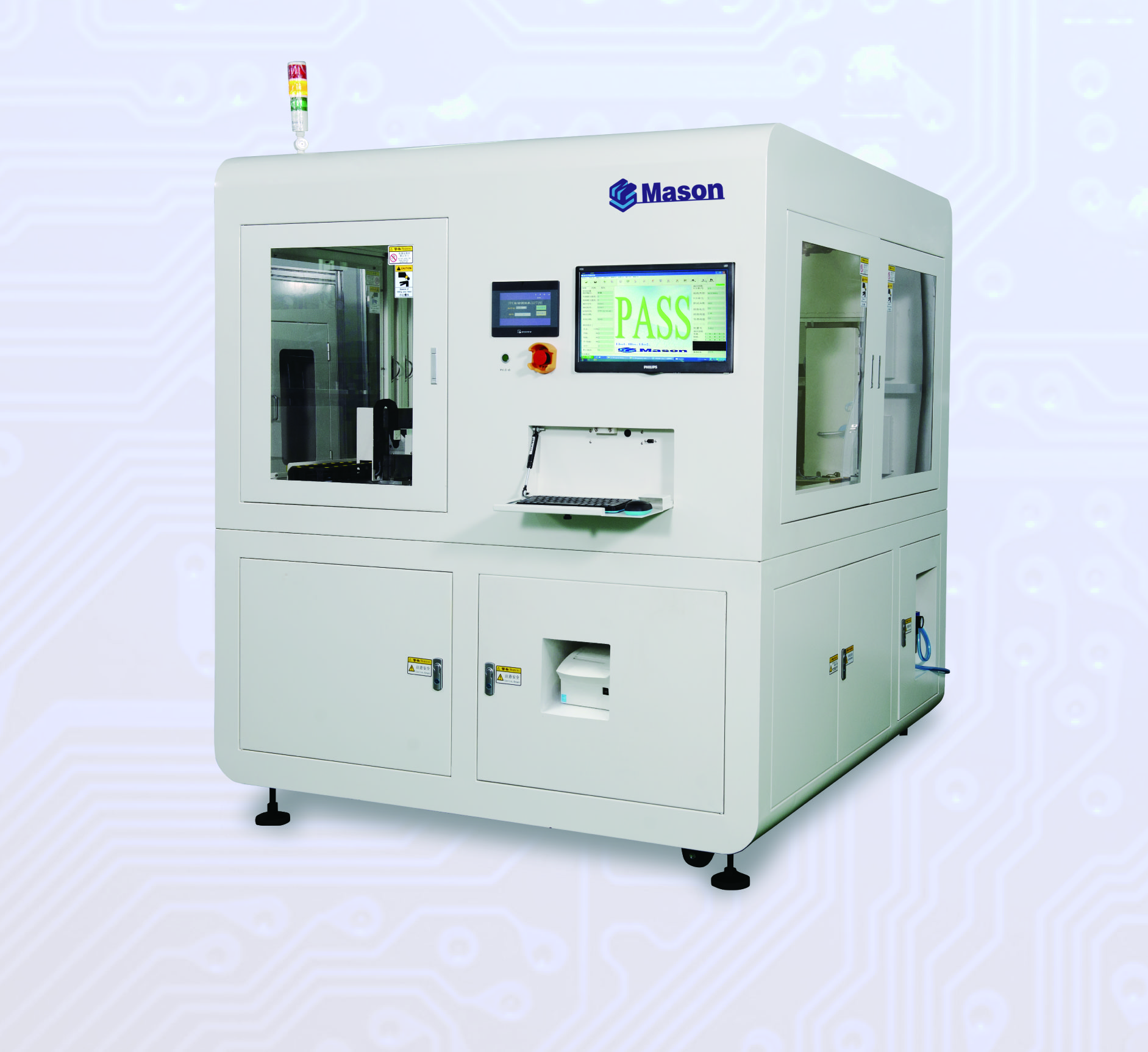

Model: MF510/MF520 Automatic FPC Testing Machine



Application Area


FPC,  R-FPCB.
Technical Advantages

  Conform to the flexible board technology, customer's existing fixture, realize the 180 °rotation test, marking and tracking confirmation system, and connect to the MES system
MF510/520 main  technical parameters



MF510
MF520
Remark
Applicable PCB size
260x400mm(max) 60x60mm (min)
250x500mm(max)
60x60mm (min)

Fixture size
400X330max
400X430max
Support small fixture compatible frame
Fixture height
70-95 or 70-110mm
Conventional composite fixture in the industry The pressing stroke can be set according to dierent heights
Eciency
400~600PCS/H

Electronic configuration
2048-4096
Expandable
Pressing device drive
Air cylinder
Servo+electric actuator

STEP method
Whole board or XY single (double) direction(s) or 180 degrees rotation
Retest method
Re-pressing retest or rotation retest
Mark
Ink,Open/Short/Open+Short/4w/OK/NG,6 types of marks
The function can be turned on or
o/CCD mark confirmation (optional)
Isolation paper
80mmX400mm
280mmX520mm

Unloading mode
OK,NG automatic sorting,drawer-type structure
Up to 4-column stacking
Informatization
Equipment information, test report records
Can be connected to MES system
Temperature/humidity
Temperature: 18~26; humidity: 40%~60%
Power supply/air supply Power supply: AC220V±5% (single-phase 3-wire); air supply: 6~8kgf/cm²
Dimensions 1680mmX1750mmX1800mm                   1700mmX1900mmX1930mm
