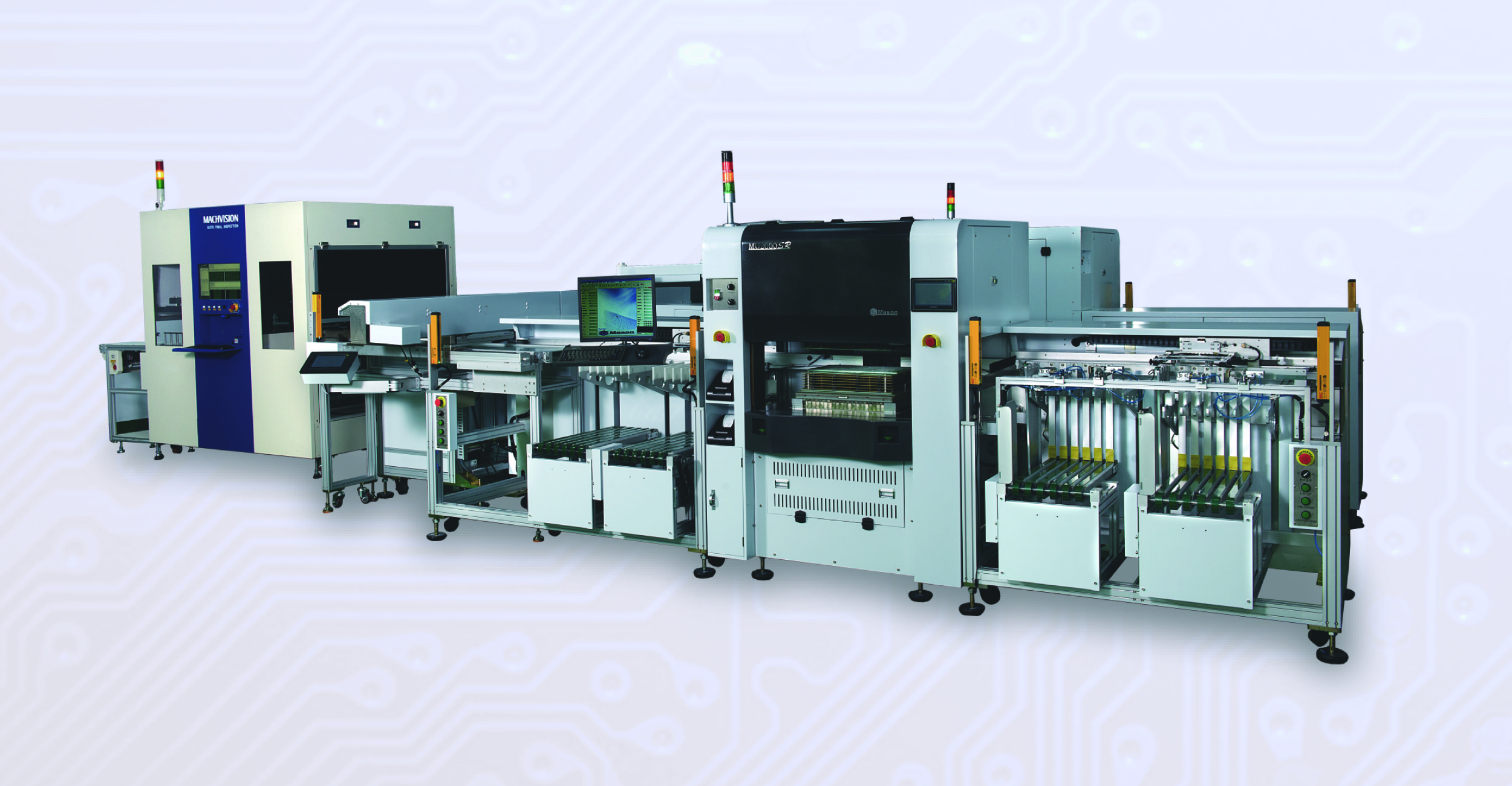

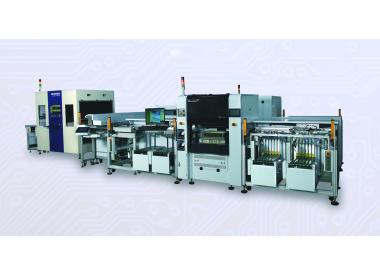

Model: MA1800 Universal &AVIOnline AutomaticTestingSystem



Application Area


1. PCB type: common multilayer PCBs
  2. Enduser product: mobile phone, ultrabook, portable electronic product, etc.
Optional Model
  1. QD
  2. sextuple density(SD)
Technical Advantages

  1. Electric test + visual inspection+ automatic online to improve efficiency and lower cost
  2. Two electric testers are connected online to meet automatic test of two different kinds of  materials
  3. Testing machine and AVI have shutdown fault, but they can operate independently, without affecting each other
  4. Test efficiency 800PCS/H
  5. Process upgrading, independently upgrade testing machine or AVI device
Configured density 50mil (QD)   39.37mil (6-density)
Max. test area 12.8"*16"(325mm X 406mm)(QD)
10.1"*15.12"(256mm X 384mm)(SD)
Max. test points 160K (QD)    192K (SD)
Size of PCB 60mm x 60mm (Min)  325mm×406mm (Max)
Thickness of PCB
0.4-4mm(automatic)
Weight of PCB <2KG
Capacity Over 800PCS/h (electric test 1s)
Fixture fine-adjustment Fine-adjustment direction: X/Y error correction;fine-adjustment accuracy: ±0.01mm
Fixture
Mason specific fixture, long and short probe structures, compatible with other structures, minimum size: 0.15mm, minimum theorectical distance beween probes: 10mil;
CAM software
MasonCam Software;meNet (point selecting software)   me Fix (universal fixture making)   meTab (overhauling software)
Net list
Mason MXG structure (other structures are optional)
Electric test parameters Test voltage: 50V~300V
conduction resistance: 10Ω~100Ω
insulation resistance: 1MΩ~100MΩ
Carbon line test: 200Ω~18KΩ, accuracy: ±10%
Embeded resistance test: 200Ω~200KΩ, accuracy: ±10%
AVI parameters  Image re solution 20μm
Defects confirm: AVI online confirm+VRS overhauling station confirm
Defects test: discoloration, oxidation, pollution, copper exposure, scratching, foreign body, dent, substrte exposure, metal notch, diffusion gold plating, solder mark sticking to metal, hole blockage, hole deviation and breakage, tin bulge, tin crushing, solder on trace, pseudo copper exposure, text missing and fuzzy
Test board: OSP, gold plating
Power supply Electric test:AC380V±5%  3 phase 5 wire system  50/60Hz
electric test: 6KW, 9A;
AVI:AC220V±5% single phase 3 wire system 50/60 Hz
electric test: 3KW 13A
Air supply
Air pressure: 0.6-0.8MPa;
air consumption: 90L/min
Environment
Dust free; temperature: 22℃~25℃;humidity: 40%~60% (noncondensating status)
Site size 9060mm(L) x 3485mm(W) x 2140mm(H)
