Integrated test system
All Products:

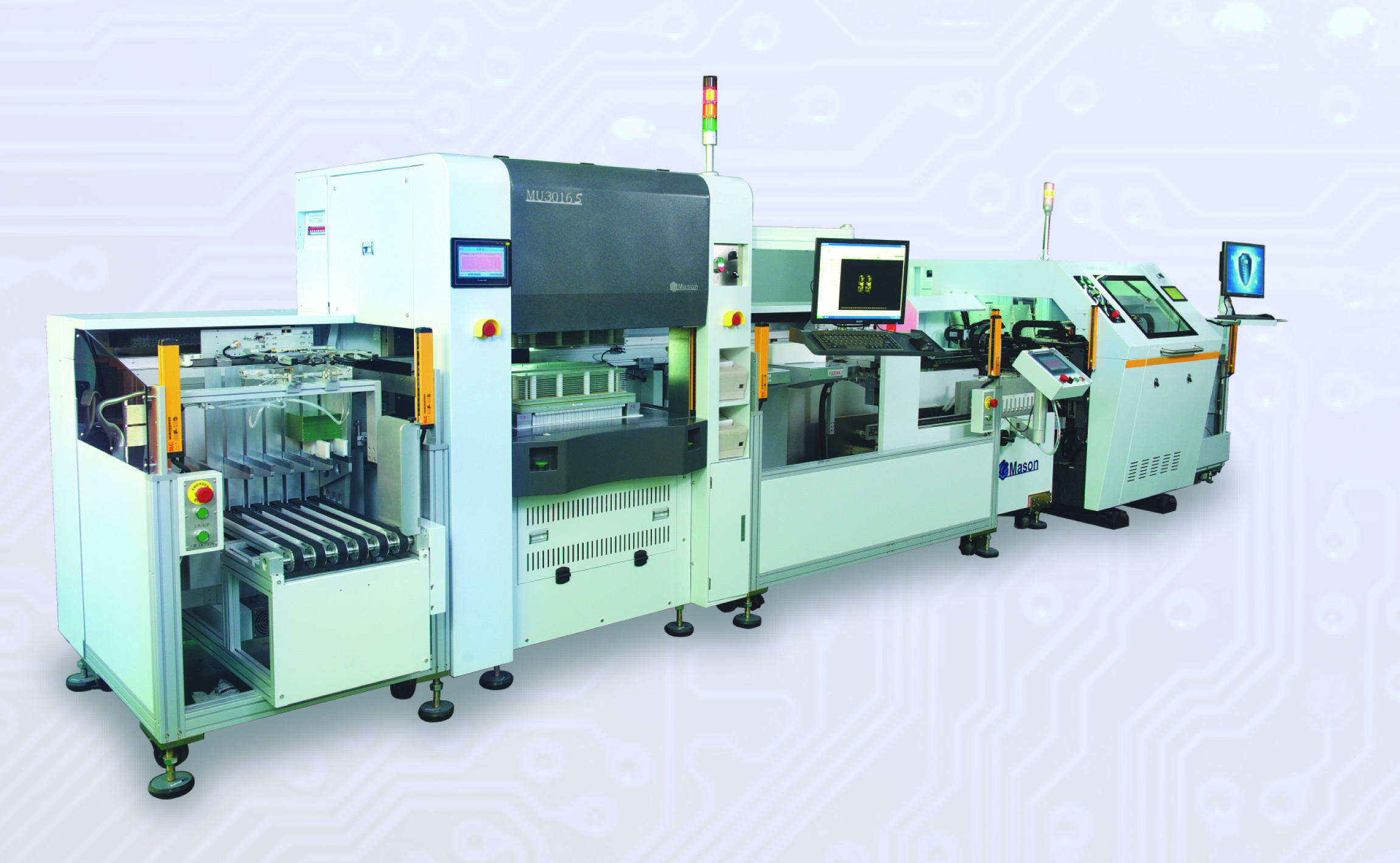

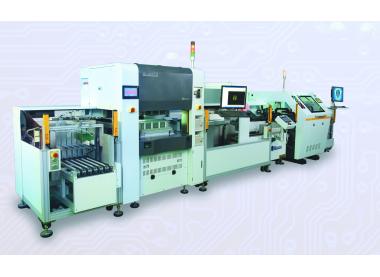

Model: UF1601Universal &Flying Probe OnlineAll-in-one



Application Area


1. PCB type: common multilayer PCBs
  2.Enduser product: mobile phone, ultrabook, portable electronic product, etc.
Optional Model
  1. QD
  2. sextuple density(SD)
Technical Advantages

  1. MASON fixture structure, fixture fine-adjustment in X/Y directions to improve PCB test yield
  2. OPEN board flying probe direction confirm, no retest
  3. PASS board first-pass yield 100%
  4. Test efficiency 600PCS/H
  5.Tester and flying probe device have shutdown fault, but they can operate independently, without affecting each other
Configured density 50mil (QD)   39.37mil (6-density)
Max. test area 12.8"*16"(325mm X 406mm)(QD)
10.1"*15.12"(256mm X 384mm)(SD)
Max. test points 160K (QD)    192K (SD)
Size of PCB 60mm x 60mm (Min)  325mm×406mm (Max)
Thickness of PCB
0.4-4mm(automatic)
Weight of PCB <2KG
Capacity over 600PCS/h (electric test 1s)
Fixture fine-adjustment Fine-adjustment direction: X/Y error correction;fine-adjustment accuracy: ±0.01mm
Fixture
Mason specific fixture, long and short probe structures, compatible with other structures, minimum size: 0.15mm, minimum theorectical distance beween probes: 10mil;
CAM software
MasonCam Software;meNet (point selecting software)   me Fix (universal fixture making)   meTab (overhauling software)
Net list
Mason MXG structure (other structures are optional)
Electric test parameter Test voltage: 50V~300V;
conduction resistance: 10Ω~100Ω;
insulation resistance: 1MΩ~100MΩ
Carbon line test: 200Ω~18KΩ, accuracy: ±10%;
Embeded resistance test: 200Ω~200KΩ, accuracy: ±10%;
Flying probe parameter Flying probe number: 2+2 (upper 2, lower 2);
Probe top pressure: 5g~30g
Repeated accuracy: ±5μm; Resolution: 2μm
PCB size: 60mm x 60mm(Min); 330mm×270mm(Max)
Min Pad Size: 80μm; Min Pad Pitch:120μm
Conduction test, test range: 1Ω~1MΩ
Accuracy: ±1%, min ± 0.1Ω
Power supply Electric test: AC380V±5%    3 phase 5 wire system    50/60 Hz    6KW    9A;
Flying probe: AC220V       single phase 3 wire system    50/60 Hz    3.5KW    1 5A;
Air supply
Air pressure: 0.6-0.8MPa;
air consumption: 120L/min
Environment
Dust free; temperature: 22℃~25℃;humidity: 40%~60% (noncondensating status)
Site size 6550mm (L) x 1483mm (W) x 2109mm (H)
