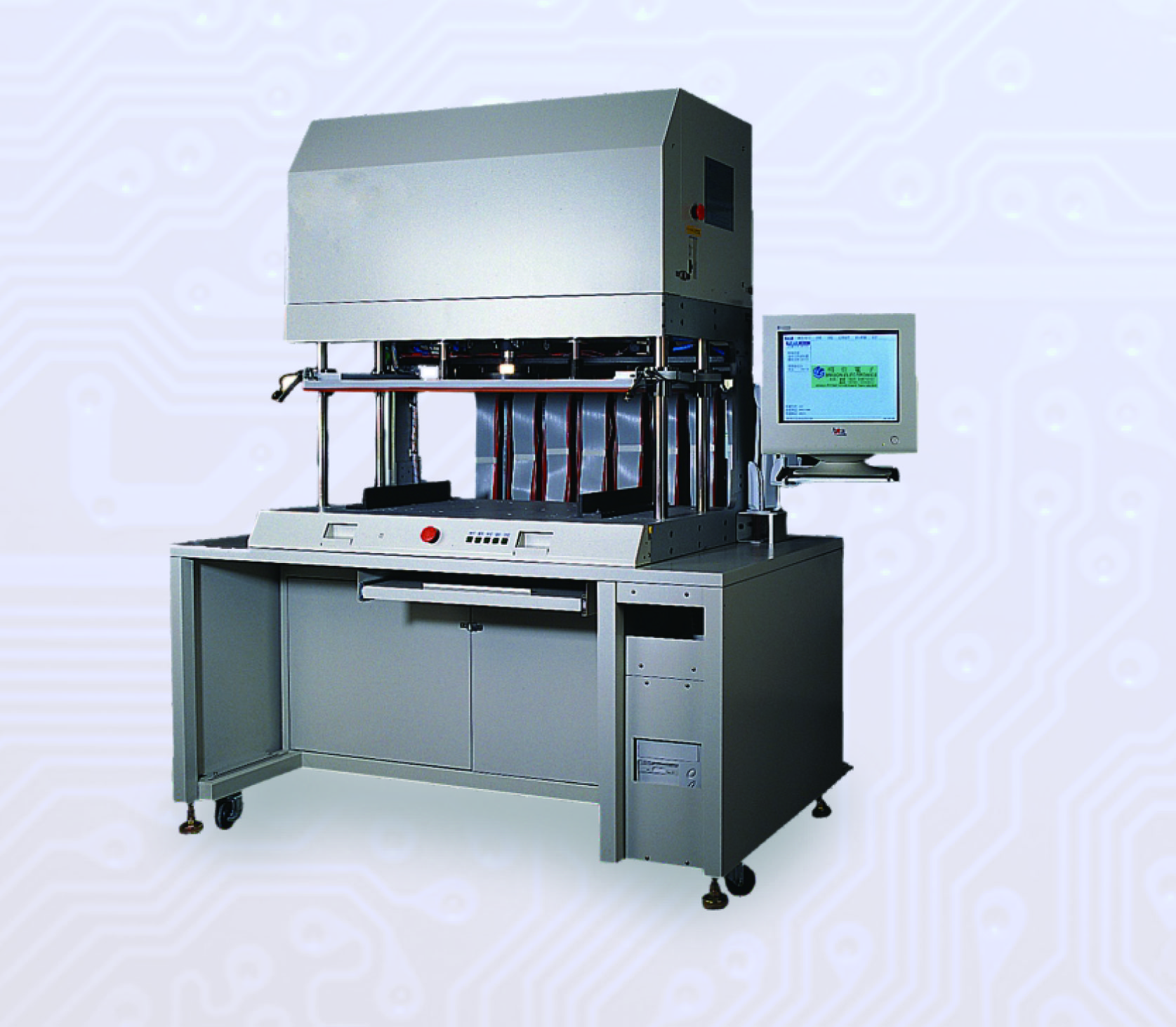

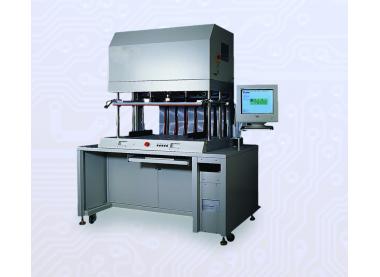

Model: MV300K 4Wire Testing Machine



Application Area


1. Failure in PTH(Plated through hole) or STH(Silver through hole)
  2. Failure in some kinds of circle loop traces
  3. Any circuit that has special requirement of resistance
MV300K 4Wire Testing Machine Technical Specifications

 Test area mv300k   :24”x15”
mv300k   :30”x25”
Test speed ≥1000net/s
Low resistance test area 0.3mΩ~200Ω
Test accuracy ±0.3mΩ±3%
Optional test points 2K~32K
MV300K Techincal
Parameters

Test points 2K-32K
Test size MV300KI   24"*15"
MV300KII  30"*25"
Fixture specification Dedicated hybrid fixture
Data format Mason or other compatible formats
Continuity test range
10Ω~100Ω
Test current 20uA~20mA
Embedded resistance test
range
10Ω~200KΩ
Carbon resistance test range
200Ω~18KΩ
Insulation Test Voltage 50V~300V
Insulation Test range 1MΩ~100MΩ
4-wire test range 0.3mΩ~200Ω
2-wire test accuracy
±10%
4-wire test accuracy
≤10mΩ:±0.3 mΩ; >10mΩ:±3%
Temperature 18℃~25℃
Humidity
40%~60%
Operating environment Dust free
Power supply requirement
Single phase 3wire   AC220V   ±5%   50HZ,8A
Air supply requirement
0.6~0.8MPa
Safety  induction Light curtain
Weight
600kg
