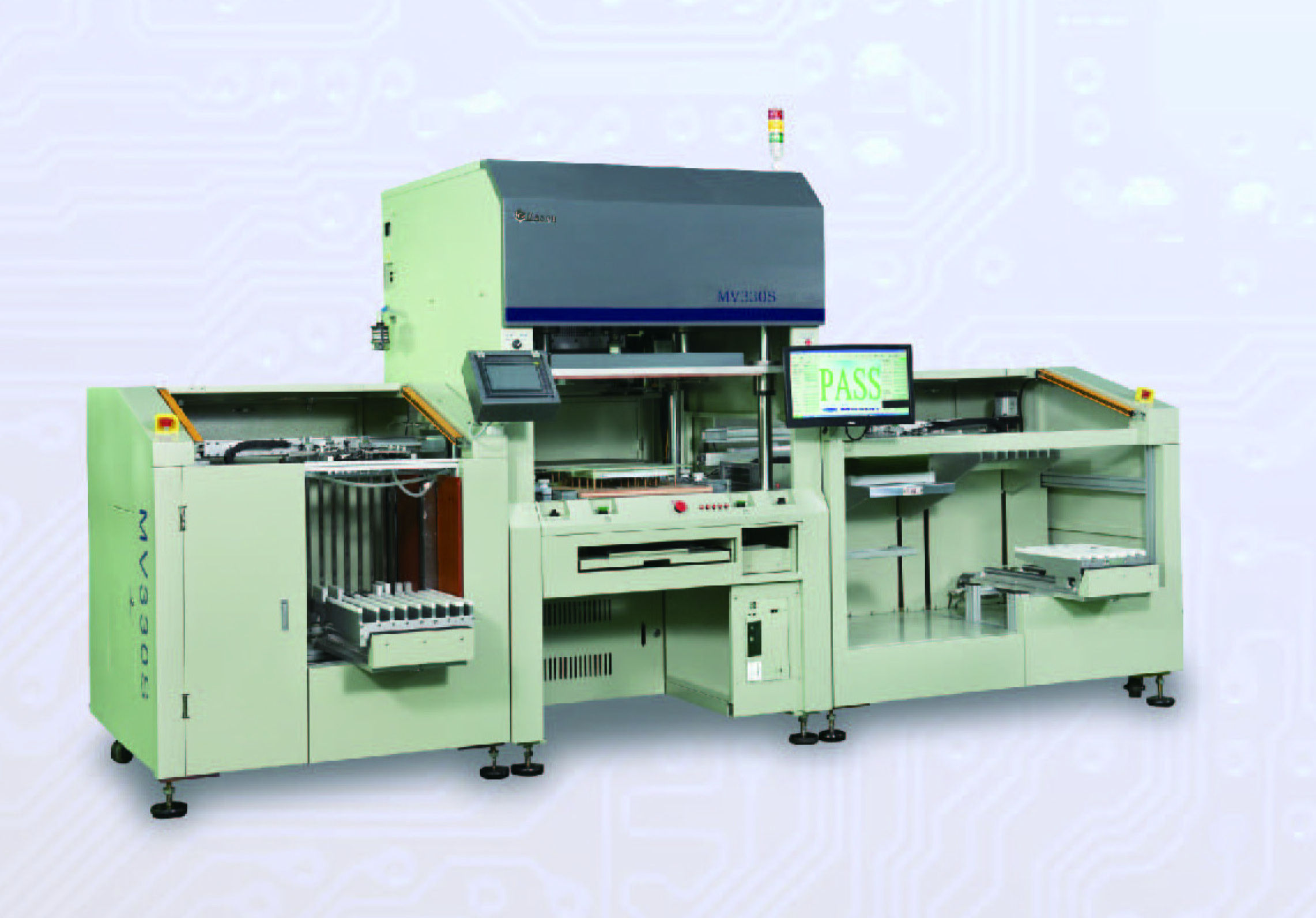

Model: MV330 Automatic 4W Testing Machine



Application Area


multilayer boards such as automotive boards
Technical Advantages

  Precise 4 -wire mΩ-level low resistance test, one touch fixture structure, cabless design;
Test Points 12K-32K
Test Size MV330S   650mm*488mm
MV330W  750mm*580mm (manual)
MV330L    950mm*580mm (manual)
PCB Size for automatic feeding 400mm*480mm(max); 80mm*80mm(min)
Thickness of PCB 0.2mm-8mm (Manual);0.6mm-4mm (Automatic)
Stacking height 380mm
Worktable and automation
configuration
Pass,Fail tables;automatic loading,pass boards automatic unloading
Fixture specification One touch fixture
Data format Mason or other compatible formats
Continuity test range
10Ω~100Ω
Test current 20mA(max)
Embedded resistance test
range
10Ω~200KΩ
Carbon resistance test range
200Ω~18KΩ
Insulation Test Voltage 50V~300V
Insulation Test range 1MΩ~100MΩ
4-wire test range 0.3mΩ~200Ω
2-wire test accuracy
±10%
4-wire test accuracy
≤10mΩ:±0.3 mΩ; >10mΩ:±3%
Temperature 18℃~25℃
Humidity
40%~60%
Operating environment NO dust
Power supply requirement
Single phase 3wire   AC220V   ±5%   50HZ,8A
Air supply requirement
0.6~0.8MPa
Safety  induction Light curtain
Dimensions  3700mm*1600mm*2100mm
Weight
2000kg
