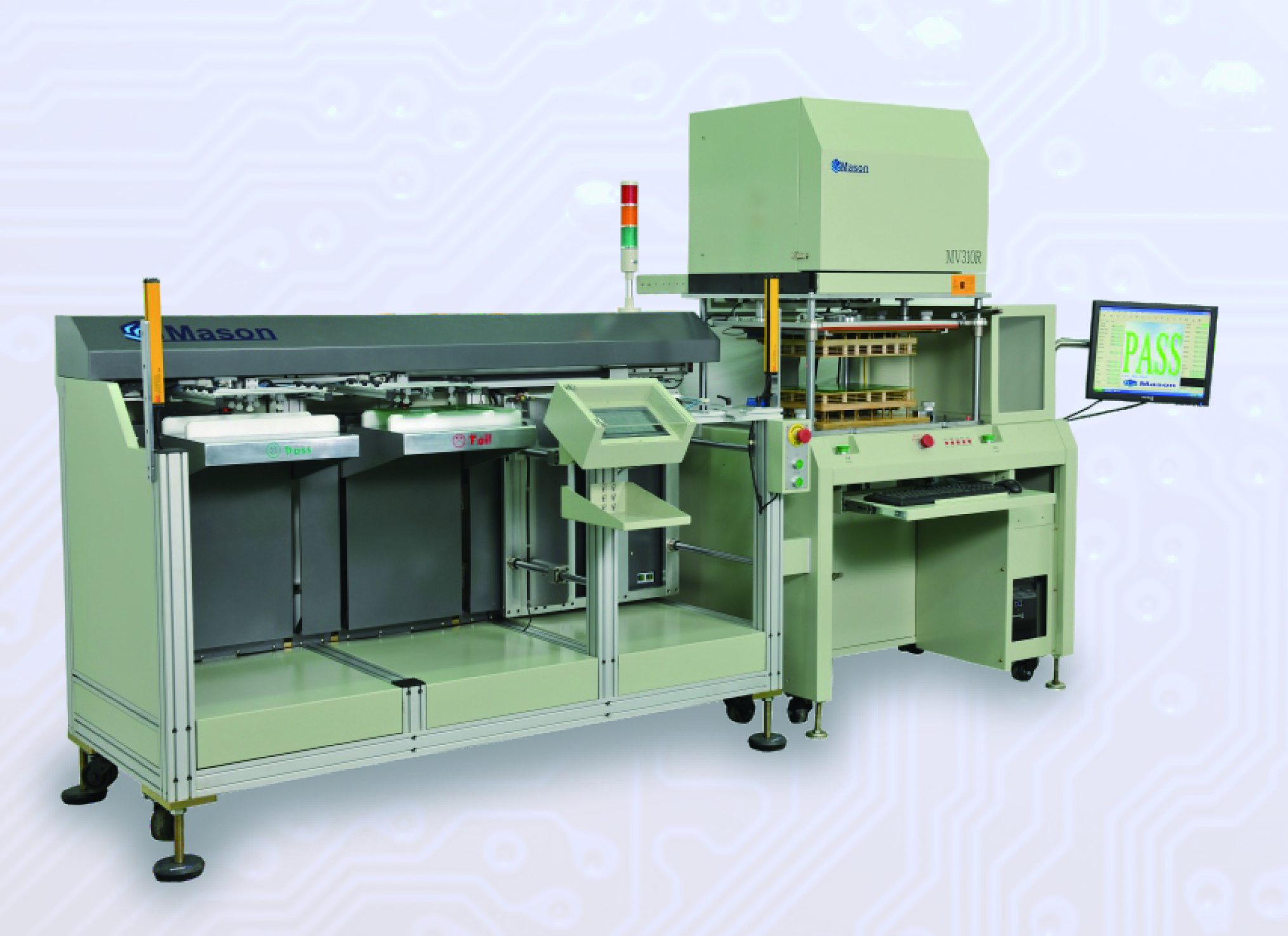

Model: MV310/310R New Single Robot Dedicated



Application Area


1.  PCB Type: Single sided、Double sided PCB、Multilayer PCB;
  2. Enduser Product: Household appliances,Industrial equipments,etc;
Technical Advantages

  1. Loading and unloading platform are on the same side for easier operating and saving space to improve plant utilization;
  2.  One robot with two sucking board equipments to loading and colleting PCBs at the same time;
  3. The main machine can run separately, which easily to manual retest the false fail PCB;
  4. The line body is located at the left side of main machine, which facilitates fixture installation and is more user-friendly;
  5. Retractable arm to reduce noise and increase efficiency and save space;
Test Size (X*Y) 24''x15''
Test Points 2048~6144
8192~16384(MV311R)
PCB Size 13.4''x16.5''(340mmx420mm)
3.15''x3.15''(80mmx80mm)
Thickness of PCB 0.1~8mm(Manual);0.6~4.0mm(Automatic)
Fixture Mason specific fixtures (compatible with fixtures of other format)
Net list
Mason MXD format(compatible with other formats such as MXA、ETT)
Electronic Test Speed
■ 2000~4000points/sec
Insulation Test Voltage 50V~300V  ±10%
Insulation Test Resistance 1MΩ~100MΩ  ±10%
Conduction Test
▲ 10Ω~100Ω ±10%
Carbon Board Test           200Ω~18kΩ ±10%
Temperature 22℃~25℃
Humidity
50%~60%(Non-condensing)
Environment Dustfree
Power supply
Single phase 3wire   AC220V   ±5%   50/60HZ
Air supply
6~8KGF/cm²
Size 3420mm(L)x1200mm(W)x1850mm(H)
3420mm(L)x1700mm(W)x1890mm(H)  (MV311R)
Optional  4-Wire test、Automatic loading and unloading function
 Low resistance test result within 20 ohm relates to fixture building accuracy
Test speed varies with the change of test condition
