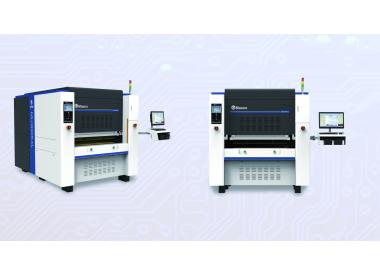

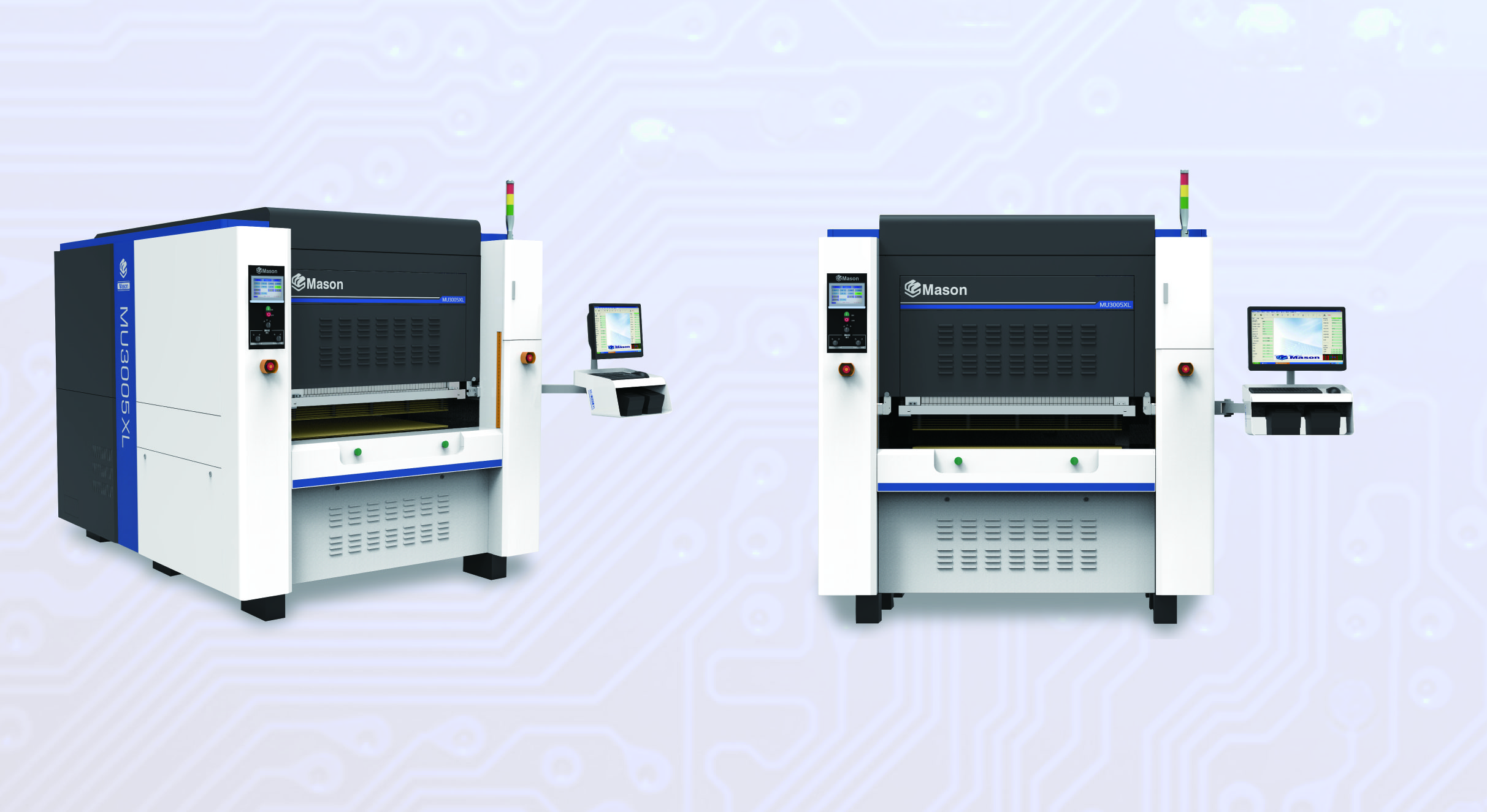

Model: MU3005XL Universal Manual Ultra Large-size



Application Area


1. PCB type: Ultra large-size PCBs such as 5G communication backplane, server, etc.
  2. Enduser protduct: communication device, large server, etc.
Optional Model
  1、DQ
  2、QD
Technical Advantages

  1.Ultra large test area, test area up to 38.4"*25.6
  2. Ultra large test points, test points up to 768K
  3. Switch card module design, select test area according to customer's needs.
  4. Microsecond (spark), reduce PCB short leakage rate
  5. Upper die rotates 90 degrees and can move forward and backward, convenient for fixture installation, debugging and maintenance
Configured density 70mil (DD)  50mil (QD)
Max. test size 38.4"*25.6" (975mm X 650mm)
Max. test points 768K
Size of PCB 975mm×650mm (Max)
Thickness of PCB
1~10mm (Manual)
Operating mode Manual mode
Capacity No less than 60PCS/H (test points: 60000)
Fixture
Mason specific fixture, long probe structure; minimum size: 0.20mm; minimum theoretical distance between probes: 12mil;
CAM software
MasonCam Software;meNet (point selecting software)   me Fix (universal fixture making)   meTab (overhauling software)
Net list
Mason MXG structure (other structures are optional)
Test voltage
50V~300V
Conduction resistance
10Ω~100Ω
Insulation resistance
1MΩ~100MΩ
Carbon line test
 200Ω~18KΩ,accuracy:±10%;
Embeded resistance test
 200Ω~200KΩ,accuracy:±10%;
Power supply
AC380V±5%     3 phase 5 wire system      50/60 Hz    9KW     13A
Air supply
Air pressure:0.6~0.8MPa;air consumption:100L/min
Environment
Dust free; temperature: 22℃~25℃;humidity: 40%~60% (noncondensating status)
Site size 1985mm (L)*2550mm (W)*2000mm(H) (Manual machine )
Optional function
(1) Spark test (2) QR code material number reading
